5-5530843-0
Manufacturer:
TE Connectivity
Mfr.Part #:
5-5530843-0
Datasheet:
Description:

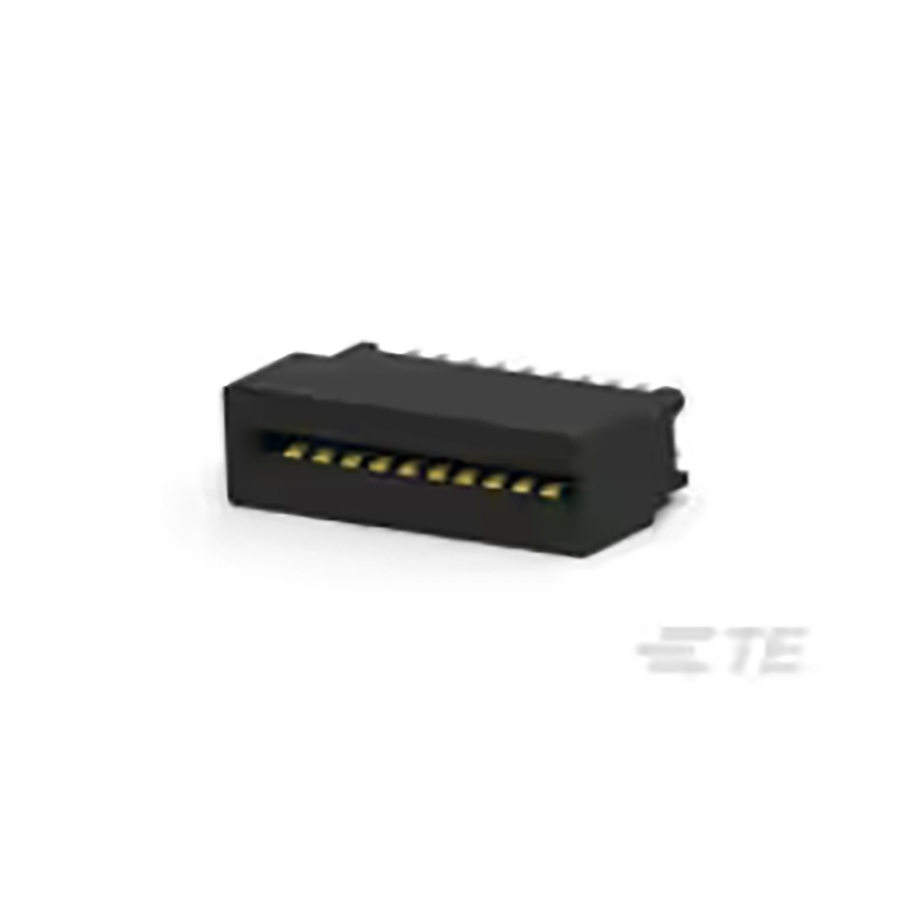

Edgeboard Connectors Through Hole Female Vertical Number of Positions:20
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Gold over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Gender | Female |
| Contact Type | |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Card Thickness | 1.37 mm to 1.78 mm |
| Housing Material | Glass Filled Polyester |
| Mounting Angle | Vertical |
| Card Type | Dual Edge |
Stock: 1964
Distributors
pcbx
pcbxUnit Price$1.33540
Ext.Price$1.33540
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33540 | $1.33540 |
| 10 | $1.13877 | $11.38770 |
| 25 | $1.00369 | $25.09225 |
| 50 | $0.96267 | $48.13350 |
| 100 | $0.92333 | $92.33300 |
| 300 | $0.88159 | $264.47700 |
| 500 | $0.84173 | $420.86500 |
| 1000 | $0.80368 | $803.68000 |
| 3000 | $0.76735 | $2302.05000 |
| 5000 | $0.73267 | $3663.35000 |
